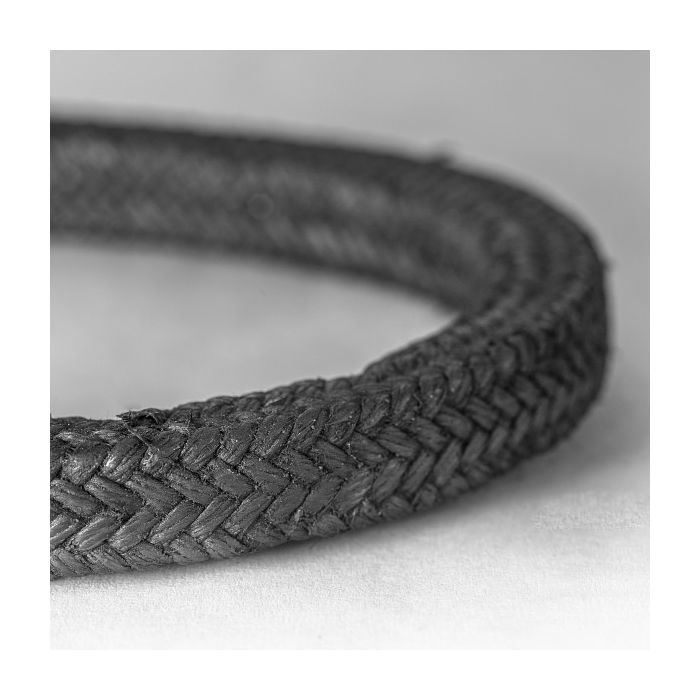

SEPCO ML4500 Graphite Packing

SEPCO ML4500 HIGH PURITY ULTRA-GRAPHITE PACKING

Construction: Multi-Lok Braid
Features: Manufactured from pure graphite yarns impregnated with a fine sub micron powder of inorganic graphite. A surface lubricant is applied to prevent wicking and to provide a bearing film between the shaft and the packing material.
Equipment: Valves (end rings only with flexible graphite center rings), high speed shafts, agitator shafts, reciprocating rods and plunger rods where minimum leakage is required under severe service conditions.
Recommended For: Strong acids and strong caustics throughout the full pH range. ML 4500 is virtually inert.
Service Conditions: Not recommended for oleum, fuming nitric acid and fluorine; temperatures to 6000°F/3316°C in non-oxidizing agents, 1200°F/649°C in steam; 800°F/427°C in oxidizers.
CAN BE NUCLEAR CERTIFIED

SEPCO ML4500 Packing Approximate Feet per Pound

NOTE: The values on this table are approximate.  The tolerances are typically +/- 10%.  If you need an exact packing length, please request a quote and we can provide SEPCO ML4500 Graphite Packing cut to your length requirements.

Install SEPCO ML4500 Packing Properly

The pump packing installation and packing cutting instructions will help you install your SEPCO ML4500 pump packing correctly.  Properly installed packing will increase SEPCO ML4500 packing life, saving valuable product and downtime.
