Recommended Applications: Deacon 3100 is ideally suited for metal-to-metal joint applications in pipeline or containment vessels that direct the flow of numerous industrial substances in gaseous, liquid, or solid form. Applications include, but aren’t limited to, flange surfaces on heat exchangers, blowers, pumps, access doors, compressors, boilers, stacks, exhaust systems, turbines, and piping.

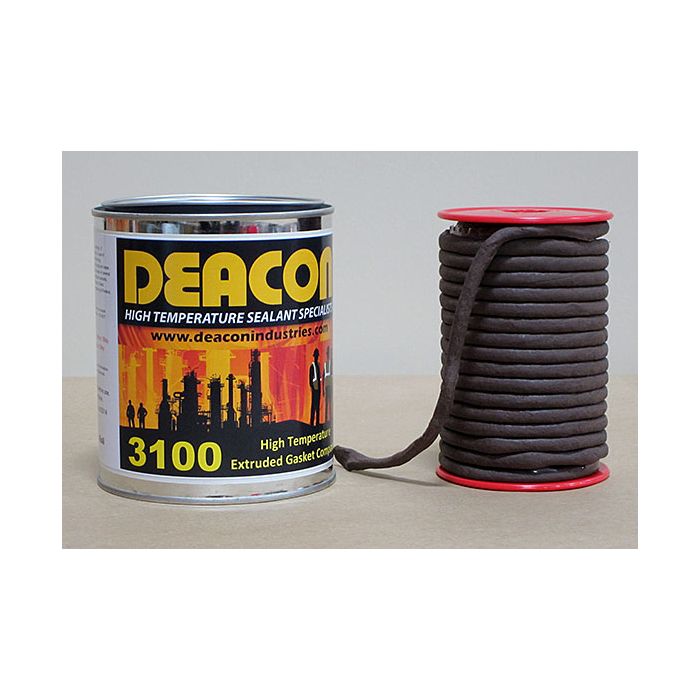

Deacon 3100 is a gasket replacement and protective barrier for metal-to-metal joints in steam or corrosive chemical environments. Deacon 3100 should be applied to the flange surface or sealing groove. When compression of the flange surfaces occurs, the material will spread to fill surface pits, warpage, and irregularities. Note: Deacon 3100 can be used with or without a fabricated gasket.
Typical Applications: Manufacturing (Turbine Flanges, Blowers, Pump Casings, Pumps, Threaded Fittings, Compressors, Access Doors, Boilers, Flange Surfaces, Stacks, Heat Exchangers, Piping). Repair Applications (Gasket Replacement, Access Doors, Steam Cut Repair, Pipeline Repair, Threaded Fittings, Cut, Warped, or Pitted Flanges).
Features: High temperature tolerance. High chemical tolerance. High pressure tolerance. High flexibility & pliability. Creates a mechanical seal. High resistance to wear. Compatibility with thermal cycling. Fast, easy repair. Quick & simple installation. Achieves seal prior to full cure.
Directions: An ideal situation in pressure type sealing applications is perfect flanges (lapped and polished finishes) for metal-to-metal seal with use of a joint dressing. The joint dressing acts as a lubricant to aid in flange movement during alignment and creates a gas tight seal in operation. Deacon manufactures liquid and paste sealant/gasket dressings for these applications. Since a metal-to-metal joint is not always achievable, Deacon 3100 Extruded Gasket Compound is available to create a seal where a gap is unavoidable. Deacon 3100 is compressible to within a few thousandths of an inch.
In applications of high pressure, a thick gasket creates a weak area in the joint for possible flange movement, thus creating an opportunity for the escape of gases and loss of seal. Maximum gap for high-pressure applications is .025".
When trying to determine the thickness of Deacon 3100 sealant needed, a general rule for sufficient sealant compression is three times the thickness of the gap to be sealed.
EXAMPLE: 1/16” flange cut or gap = 3/16” diameter sealant
Shelf Life: Refrigeration will extend shelf life to one year in unopened containers.
- Surface should be clean and dry (free from oil or foreign material to ensure proper sealing/adhesion).
- On metal-to-metal joints, apply directly to one side of mating surface. If using a gasket, apply sealant cord to both sides of gasket or both sides of the mating surfaces.
- To complete the seal, simply cross the two ends of the sealant cord. Sealant should be pressed firmly into place, as to resemble a tape-like seal.
- Close and tighten joint (torqued to the equipment manufacturer’s specifications if sealing a bolted flange).
- Product will cure in service with heat.
- Check for possible re-torque that may be required in certain situations after sealant cures to form a solid gasket.
Note: In high pressure applications or when pressure testing at ambient, it is recommended to pre-cure with a heat gun, oven, or to dry fire / blow down at atmospheric (running heat without pressure). Unlike silicone or epoxy products, our thermosetting sealants require heat to cure.
Cure: The following is a general guideline for the time required for a full cure at various temperatures. A seal will be achieved before a full cure is reached.
- 300°F --- 6 hrs
- 400°F --- 4 hrs
- 500°F --- 3 hrs
- 600°F --- 1 hr
- 700°F + --- <1 hr
