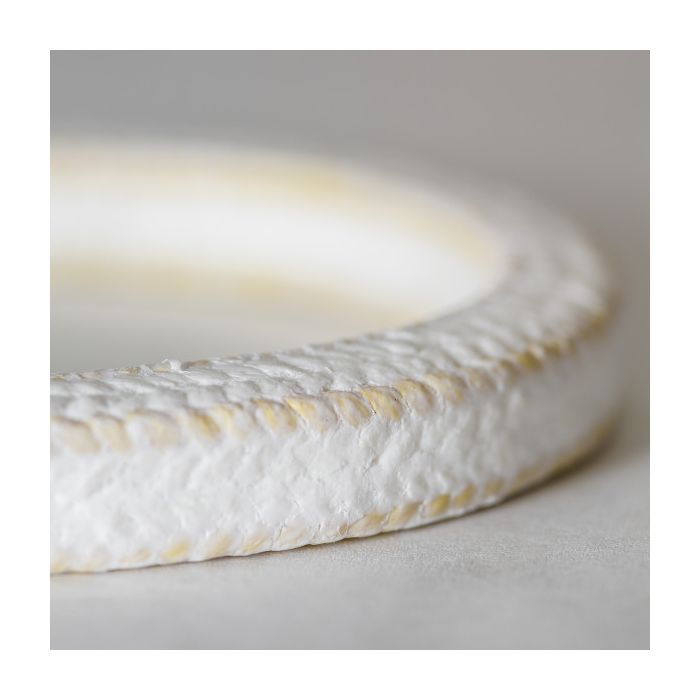

SEPCO ML2225A PTFE Impregnated Packing with Aramid Corners

More Views

SEPCO ML2225A PTFE Impregnated Packing with Aramid Corners

Sold by: Pound

Availability: In stock

Construction: Multi-Lok Braid
Features: Yarns are dipped in PTFE suspensoid insuring even distribution of the PTFE. The fibers are saturated and sealed with the PTFE particles, protecting the fibers from chemical action. The PTFE provides the packing with a greater degree of chemical inertness, lower coefficient of friction and prevents penetration of chemical fluids. The corner tracks are made from an Aramid filament yarn to reduce extrusion and increase pressure and strength characteristics.
Surface Treatment: A surface coating of PTFE is applied after braiding. To assure good break-in characteristics, a special high temperature synthetic lubricant is added.
Equipment: General service, rotating and reciprocating pumps, agitators.
Recommended For: Caustics, mild acids, difficult chemicals, air, gases, solvents, oils, general plant applications.
Service Conditions: Shaft speeds to 1885 FPM; temperatures to 500°F/260°C; pH 3-11.


Most metric sizes in stock.

SEPCO ML2225A PTFE Impregnated Packing with Aramid Corners - 1/4"

Approximate feet per pound: 24 ft

$64.70

SEPCO ML2225A PTFE Impregnated Packing with Aramid Corners - 5/16"

Approximate feet per pound: 16 ft

$58.37

SEPCO ML2225A PTFE Impregnated Packing with Aramid Corners - 8mm

Approximate feet per pound: 16 ft

$54.55

SEPCO ML2225A PTFE Impregnated Packing with Aramid Corners - 3/8"

Approximate feet per pound: 11 ft

$53.46

SEPCO ML2225A PTFE Impregnated Packing with Aramid Corners - 7/16"

Approximate feet per pound: 7.6 ft

$53.46

SEPCO ML2225A PTFE Impregnated Packing with Aramid Corners - 1/2"

Approximate feet per pound: 6.3 ft

$53.46

SEPCO ML2225A PTFE Impregnated Packing with Aramid Corners - 9/16"

Approximate feet per pound: 5.3 ft

$53.46

SEPCO ML2225A PTFE Impregnated Packing with Aramid Corners - 5/8"

Approximate feet per pound: 4.5 ft

$53.46

SEPCO ML2225A PTFE Impregnated Packing with Aramid Corners - 3/4"

Approximate feet per pound: 3 ft

$53.46

SEPCO ML2225A PTFE Impregnated Packing with Aramid Corners - 7/8"

Approximate feet per pound: 2 ft

$53.46

SEPCO ML2225A PTFE Impregnated Packing with Aramid Corners - 1"

Approximate feet per pound: 1.5 ft

$53.46
Description

Details

SEPCO ML2225A ARAMID REINFORCED GENERAL SERVICE PACKING

Construction: Multi-Lok Braid
Features: Yarns are dipped in PTFE suspensoid insuring even distribution of the PTFE. The fibers are saturated and sealed with the PTFE particles, protecting the fibers from chemical action. The PTFE provides the packing with a greater degree of chemical inertness, lower coefficient of friction and prevents penetration of chemical fluids. The corner tracks are made from an Aramid filament yarn to reduce extrusion and increase pressure and strength characteristics.
Surface Treatment: A surface coating of PTFE is applied after braiding. To assure good break-in characteristics, a special high temperature synthetic lubricant is added.
Equipment: General service, rotating and reciprocating pumps, agitators.
Recommended For: Caustics, mild acids, difficult chemicals, air, gases, solvents, oils, general plant applications.
Service Conditions: Shaft speeds to 1885 FPM; temperatures to 500°F/260°C; pH 3-11.

SEPCO ML2225A Packing Approximate Feet per Pound

NOTE: The values on this table are approximate.  The tolerances are typically +/- 10%.  If you need an exact packing length, please request a quote and we can provide SEPCO ML2225A packing cut to your length requirements.

Install SEPCO ML2225A Packing Properly

The pump packing installation and packing cutting instructions will help you install your SEPCO ML2225A pump packing correctly.  Properly installed packing will increase SEPCO ML2225A packing life, saving valuable product and downtime.

Additional Information

Additional Information

Cross Reference

SEPCO ML2225A PTFE Impregnated Packing with Aramid Corners Cross Reference

  • Anchor 1338K Packing
  • Crane C1061 Packing
  • Garlock 8921-K Packing
  • Palmetto 1340

For a complete packing cross reference list, please see our Packing Cross Reference Guide.
