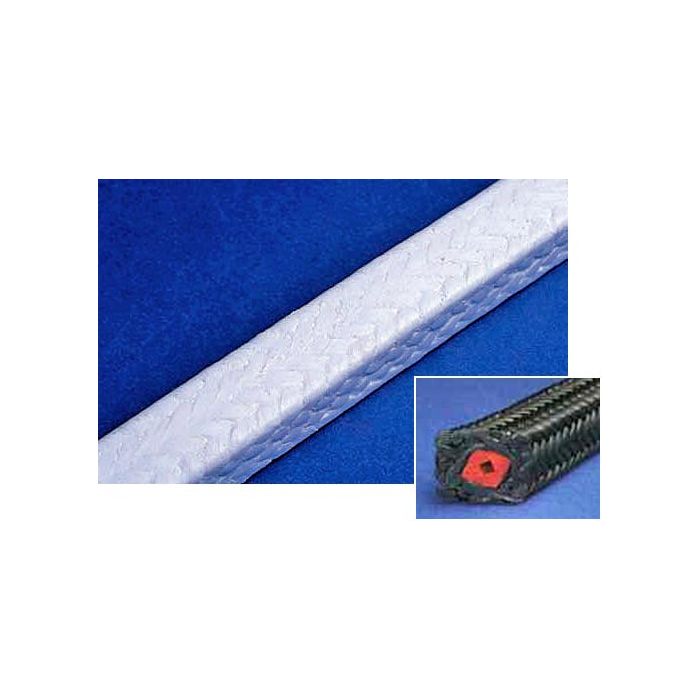

SEPCO ML2225 Hollow Core PTFE Impregnated Packing
Call for availability.
Construction: Multi-Lok braid over hollow core silicone center
Features: Yarns are coated in PTFE suspensoid. This system of impregnation assures even distribution of the PTFE. The fibers are saturated and sealed with the PTFE particles, protecting the fibers from chemical action.
Surface Treatment: A surface coating of PTFE is applied after braiding. To assure good break-in characteristics, a special high temperature synthetic lubricant is added.
Equipment: General service on rotary pumps, mixers, agitators.
Recommended For: Caustics, mild acids, difficult chemicals, air, gases, solvents, oils, general chemical plant applications.
Service Conditions: Shaft speeds to 1885; temperatures to 500°F/260°C; pH 3-11.
HOLLOW CORE PACKING
SEPCO’s Hollow Core packings are specifically designed to seal large rotating equipment like mixers and agitators. Testing has proven that a high quality braided packing with a rubber core will outlast conventional packing in applications associated with excessive shaft deflection on large shafts.
Styles: All packing styles are available in Hollow Core design.
Sizes Available: 1/2” and up.
Core Material: Silicone; standard (others upon request).
Hollow Core: For rotating equipment.
Most metric sizes in stock.
SEPCO ML2225 HOLLOW CORE PTFE SYNTHETIC YARN PACKING
Construction: Multi-Lok braid over hollow core silicone center
Features: Yarns are coated in PTFE suspensoid. This system of impregnation assures even distribution of the PTFE. The fibers are saturated and sealed with the PTFE particles, protecting the fibers from chemical action.
Surface Treatment: A surface coating of PTFE is applied after braiding. To assure good break-in characteristics, a special high temperature synthetic lubricant is added.
Equipment: General service on rotary pumps, mixers, agitators.
Recommended For: Caustics, mild acids, difficult chemicals, air, gases, solvents, oils, general chemical plant applications.
Service Conditions: Shaft speeds to 1885; temperatures to 500°F/260°C; pH 3-11.
HOLLOW CORE PACKING
SEPCO’s Hollow Core packings are specifically designed to seal large rotating equipment like mixers and agitators. Testing has proven that a high quality braided packing with a rubber core will outlast conventional packing in applications associated with excessive shaft deflection on large shafts.
Styles: All packing styles are available in Hollow Core design.
Sizes Available: 1/2” and up.
Core Material: Silicone; standard (others upon request).
Hollow Core: For rotating equipment.
SEPCO ML2225 Hollow Core Packing Approximate Feet per Pound
NOTE: The values on this table are approximate. The tolerances are typically +/- 10%. If you need an exact packing length, please request a quote and we can provide SEPCO ML2225 Hollow Core PTFE Synthetic Yarn Pump Packing cut to your length requirements.
Cross Reference | For a complete packing cross reference list, please see our Packing Cross Reference Guide. |
---|
-
