SEPCO ML4461 Hollow Core Carlon (PTFE Impregnated Carbon Fiber) Packing

More Views

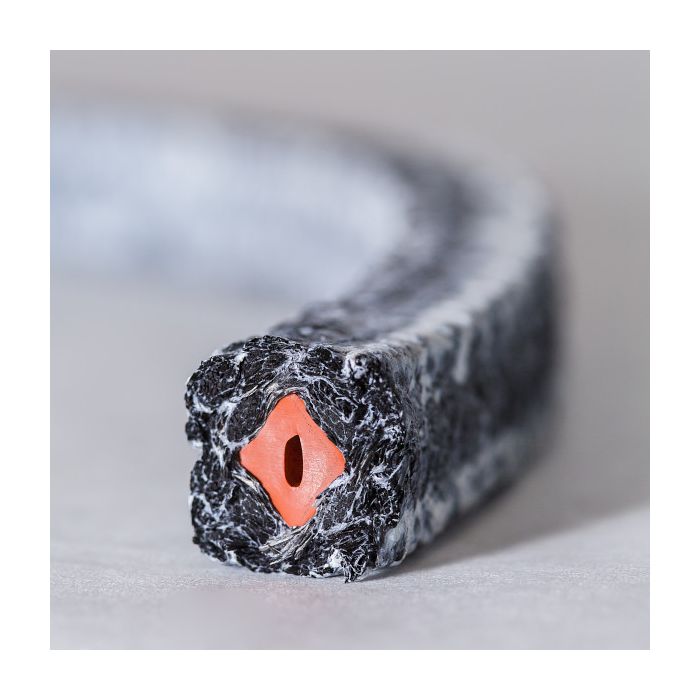

SEPCO ML4461 Hollow Core Carlon (PTFE Impregnated Carbon Fiber) Packing

Sold by: Pound

Availability: In stock

Construction: Multi-Lok braid over hollow core silicone center
Features: SEPCO ML 4461 Carlon is a carbon filament packing treated with PTFE to help prevent color contamination and carbon migration.
Treatment: Each strand of the carbon yarn is treated and impregnated with a PTFE suspensoid, totally encapsulating the packing to prevent carbon filaments migrating into the pumpage.
Equipment: Pulp mill equipment, steaming vessels, top separators, refiners, outlet devices, blow pumps, stock pumps, agitators and valves.
Recommended For: Most chemical services, except strong oxidizers.
Limitations: Shaft speeds to 3000 FPM; temperatures to 600°F/345°C; pH range 0 – 14.


HOLLOW CORE PACKING
SEPCO’s Hollow Core packings are specifically designed to seal large rotating equipment like mixers and agitators. Testing has proven that a high quality braided packing with a silicone rubber core will outlast conventional packing in applications associated with excessive shaft deflection on large shafts.
Styles: All packing styles are available in Hollow Core design.
Sizes Available: 1/2” and up.
Core Material: Silicone; standard (others upon request).
Hollow Core: For rotating equipment.


Most metric sizes in stock.

SEPCO ML4461 Hollow Core Carlon (PTFE Impregnated Carbon Fiber) Packing - 1/2”

Approximate feet per pound: 5.7 ft

$153.52

SEPCO ML4461 Hollow Core Carlon (PTFE Impregnated Carbon Fiber) Packing - 9/16”

Approximate feet per pound: 4.6 ft

$153.52

SEPCO ML4461 Hollow Core Carlon (PTFE Impregnated Carbon Fiber) Packing - 5/8”

Approximate feet per pound: 3.8 ft

$153.52

SEPCO ML4461 Hollow Core Carlon (PTFE Impregnated Carbon Fiber) Packing - 3/4”

Approximate feet per pound: 2.7 ft

$153.52

SEPCO ML4461 Hollow Core Carlon (PTFE Impregnated Carbon Fiber) Packing - 7/8”

Approximate feet per pound: 2 ft

$153.52

SEPCO ML4461 Hollow Core Carlon (PTFE Impregnated Carbon Fiber) Packing - 1”

Approximate feet per pound: 1.6 ft

$153.52
Description

Details

SEPCO ML4461 CARLON PACKING

Construction: Multi-Lok Braid
Features: SEPCO ML 4461 Carlon is a carbon filament packing treated with PTFE to help prevent color contamination and carbon migration.
Treatment: Each strand of the carbon yarn is treated and impregnated with a PTFE suspensoid, totally encapsulating the packing to prevent carbon filaments migrating into the pumpage.
Equipment: Pulp mill equipment, steaming vessels, top separators, refiners, outlet devices, blow pumps, stock pumps, agitators and valves.
Recommended For: Most chemical services, except strong oxidizers.
Limitations: Shaft speeds to 3000 FPM; temperatures to 600°F/345°C; pH range 0 - 14.

SEPCO ML4461 Packing Cross Reference

ChemstarChestertonCraneGarlockTeaditUtex
5017381655-CF50002012228

SEPCO ML4461 Packing Approximate Feet per Pound

NOTE: The values on this table are approximate.  The tolerances are typically +/- 10%.  If you need an exact packing length, please request a quote and we can provide SEPCO ML4461 Carlon Packing cut to your length requirements.

Install SEPCO ML4461 Packing Properly

The pump packing installation and packing cutting instructions will help you install your SEPCO ML4461 pump packing correctly.  Properly installed packing will increase SEPCO ML4461 packing life, saving valuable product and downtime.
